Product Features
Different Designs to Match Your Roof Style

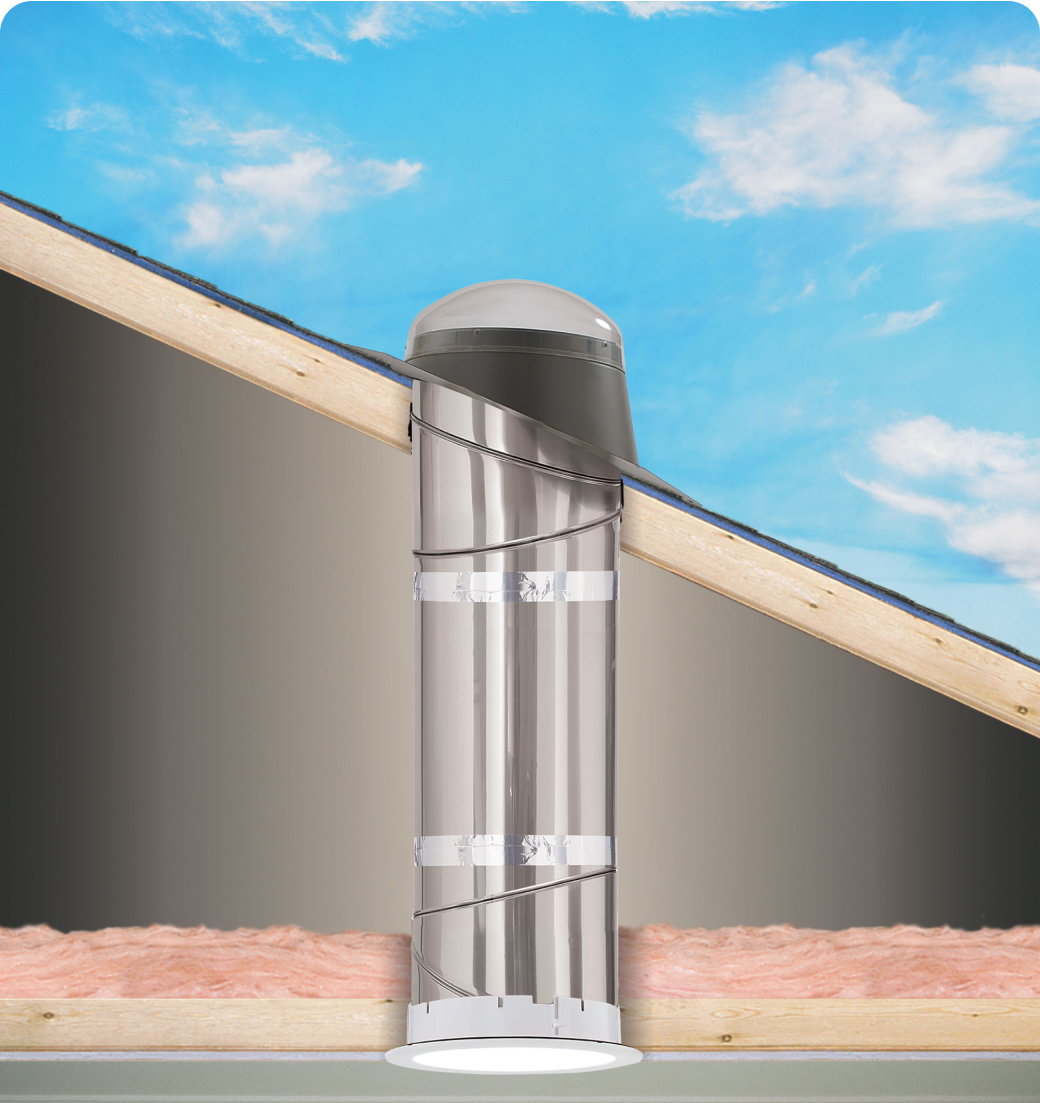

Pitched TMR
- Pitched flashing provides optimum angle for gathering light from all roof directions.
- 10” tile flashing kit available. 14” and 22” tile flashings available for the TCR.
- Impact models available for hurricane prone areas.
- 99.99% silver reflective layer with a 20-year tunnel warranty, total reflectance +98%.

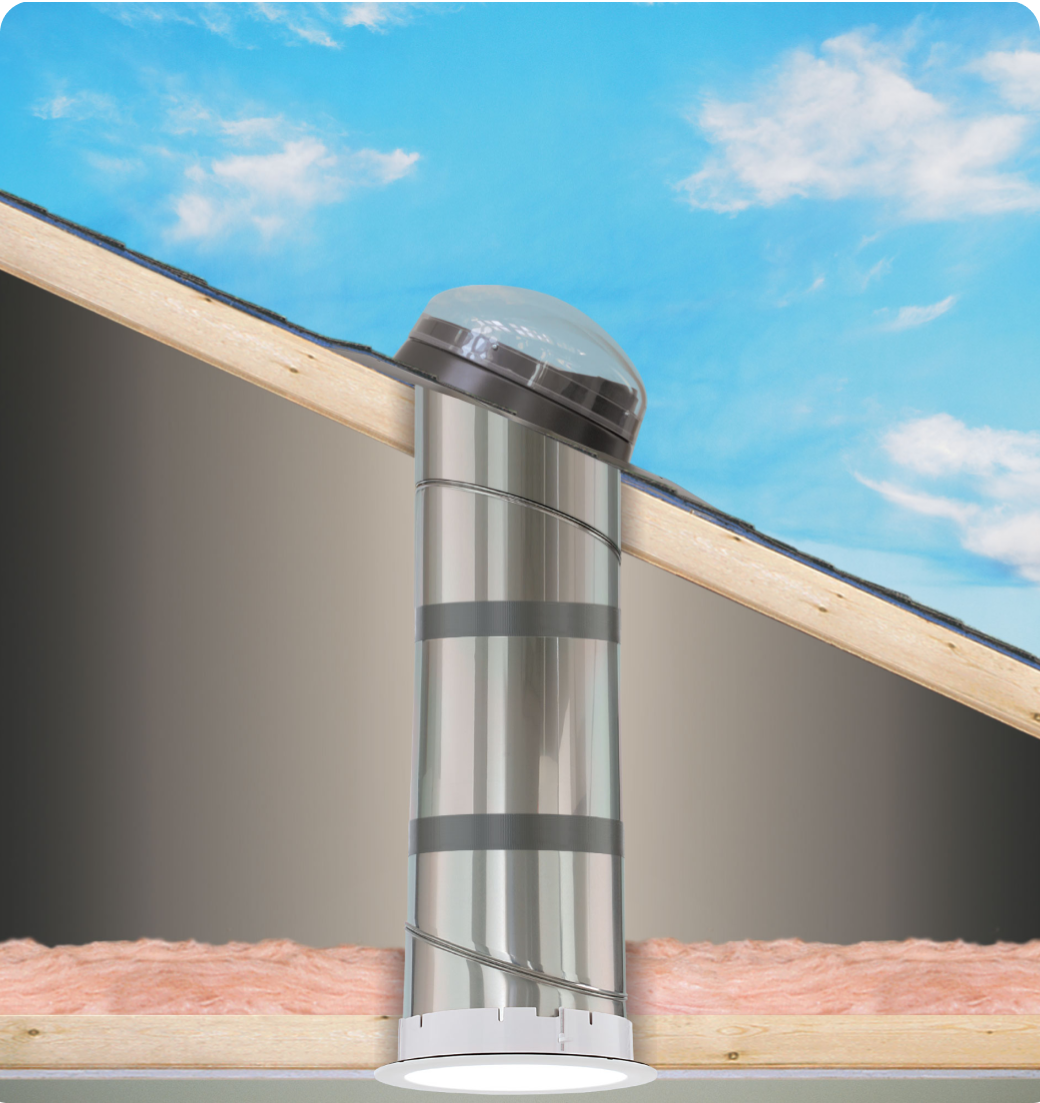

Low Profile TGR
- Low profile flashing provides an integrated look with the roof line.
- Pivoting tunnel system and flexible tunnel for a quick and easy installation.
- Impact models available for hurricane prone areas.

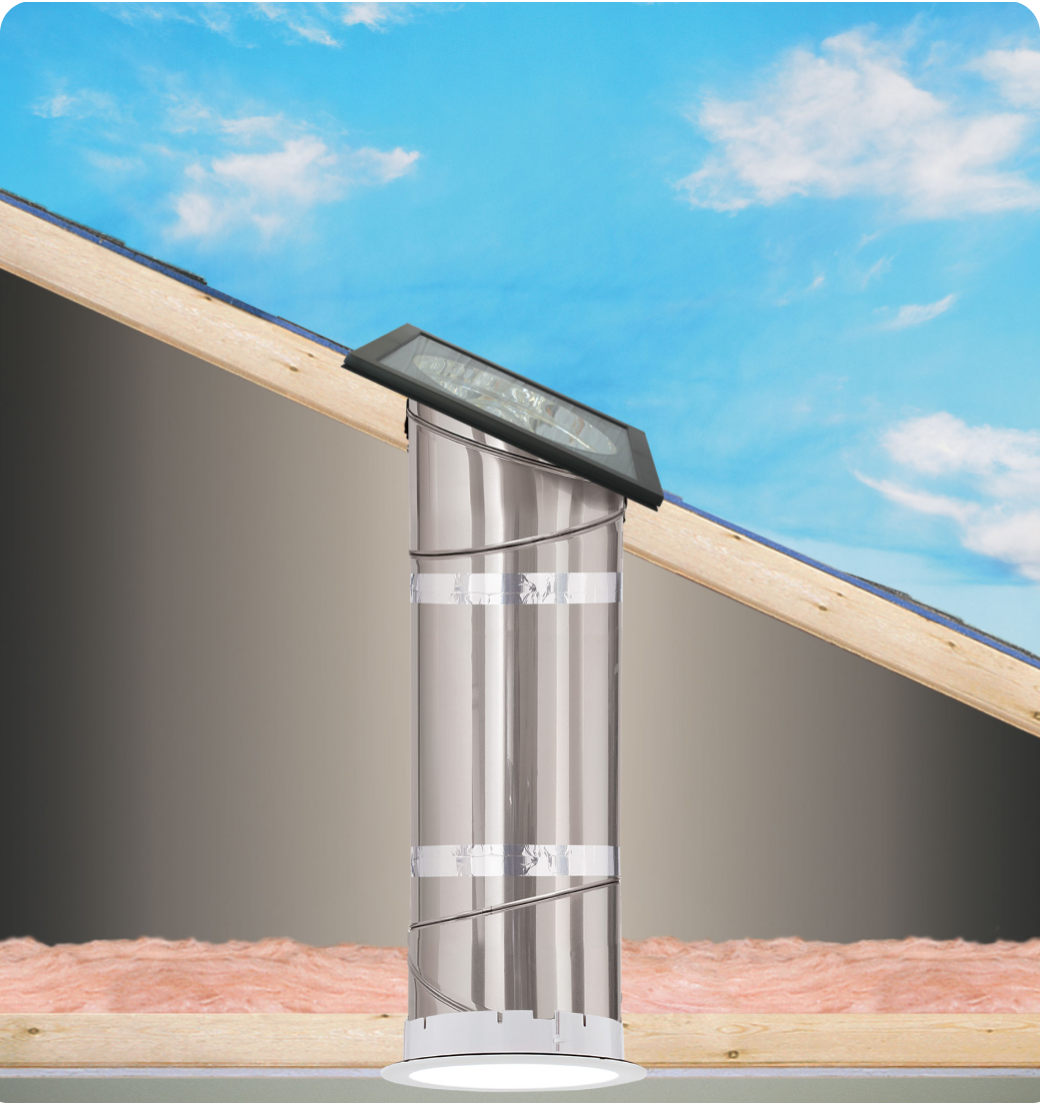

Flat Glass TLR
- Low profile glass design creates sleek appearance on any roofline.
- Perfect for developments where local ordinances do not allow acrylic dome tubular skylights.
- Available in 14” rigid only.
- Prefabricated light tunnel makes it easy to install.

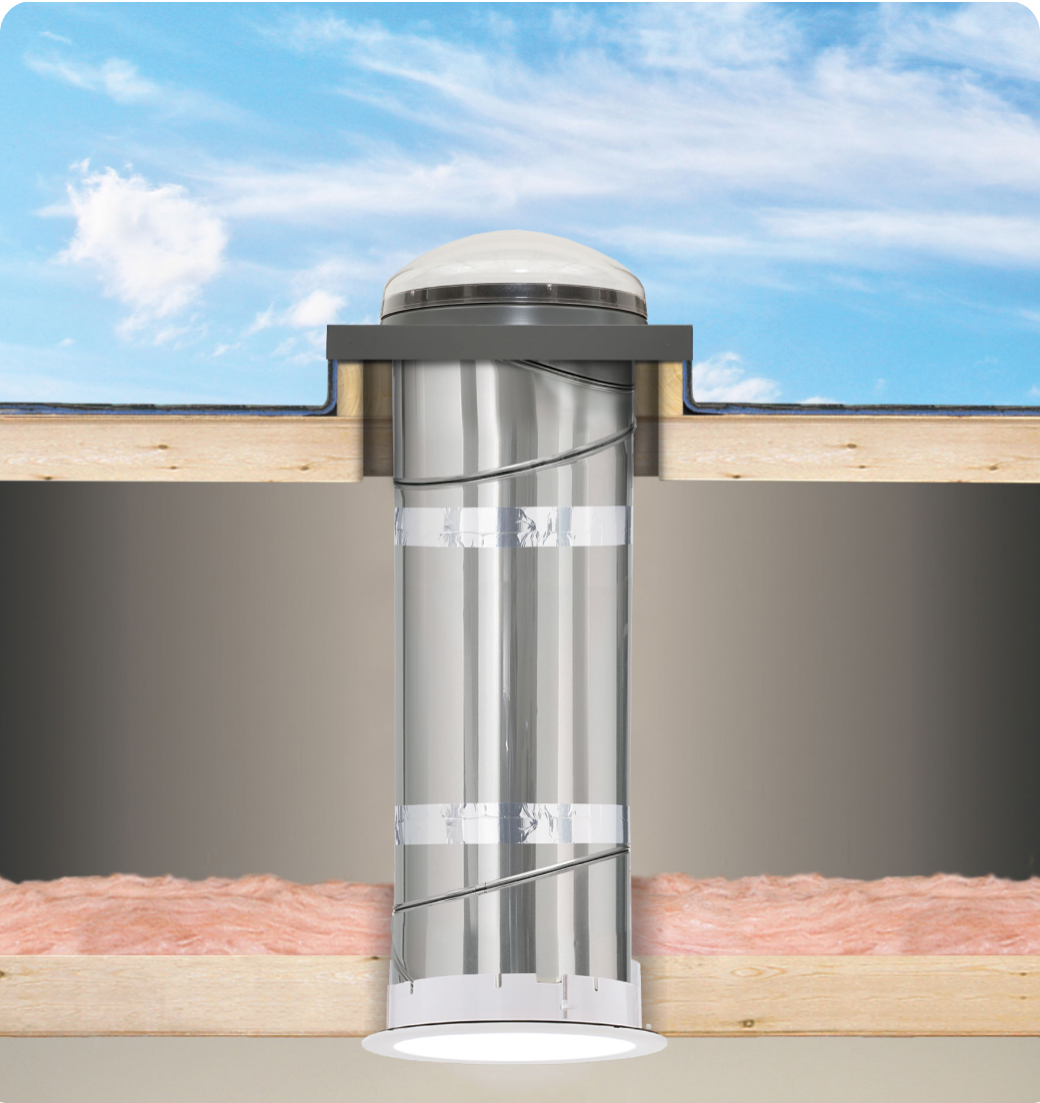

Curb Mount TCR
- One piece metal curb mounted flashing.
- Low profile dome - acrylic or polycarbonate.
- Pivoting tunnel system.
- Available in 14" rigid..
Wildfire TZR/TZRL/TZRQ
- Features a fireproof tempered diamond wire flat glass, allowing it to pass an ASTM E108 Class A Burn Brand Test
- Designed with a flat glass exterior to pass building codes and strict homeowner’s association regulations, unlike traditional acrylic dome tubular skylights
- TZR available for tile, shingle and metal* roof installations. TZRL and TZRQ are available for shingle roofs only. *Flashing for metal roofs not provided by VELUX.
- Qualifies for our Industry Leading Warranty if installed with VELUX flashing
- The TZRL model comes fully packaged with all the necessary components, including flashing, to make for a quick and easy installation (Note: Flashing sold separately for the TZR model).
- TZRQ Wildfire Glass Pan-Flashed model features a pre-installed metal pan-flashing and flat glass exterior.
Optically Engineered
Designed to capture light through a high impact dome on the roof and send it through a highly reflective tube, transmitting a pure natural light with no color shift.
Pivoting Tube System
The adjustable pitch adapter makes tube installation easier and enables more light to be captured.
Flexi Loc™ System
A tube connection system that cuts tube installation time in half and highly reflective tube that deliver the highest quality daylight into the space below.
VELUX Sun Tunnel® Skylights are available in 10" and 14". Your installer will help you determine the exact size needed for your space.
Price Ranges for VELUX Sun Tunnel® Skylight
10" Sun Tunnel®
14" Sun Tunnel®
